12V 100Ah Deep Bluetooth Built-in 100A BMS for Trolling Motor, Boat, Rv, Solar, Backups

12V 100Ah Deep Bluetooth Built-in 100A BMS for Trolling Motor, Boat, Rv, Solar, Backups

$228.99 USD
$0.00 USD $228.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Application: RV Campers,Golf Cart,electric boats, forklifts, AGV robots etc

BMS: 100A Smart bluetooth BMS

Bluetooth Battery Support Languages: Spanish, German, English, Chinese, Russian, Norwegian and French

Brand Name: KEPWORTH

Certification: CE,FCC,RoHS,weee

Connection: Bluetooth

Cycle Life: More than 6000 Times

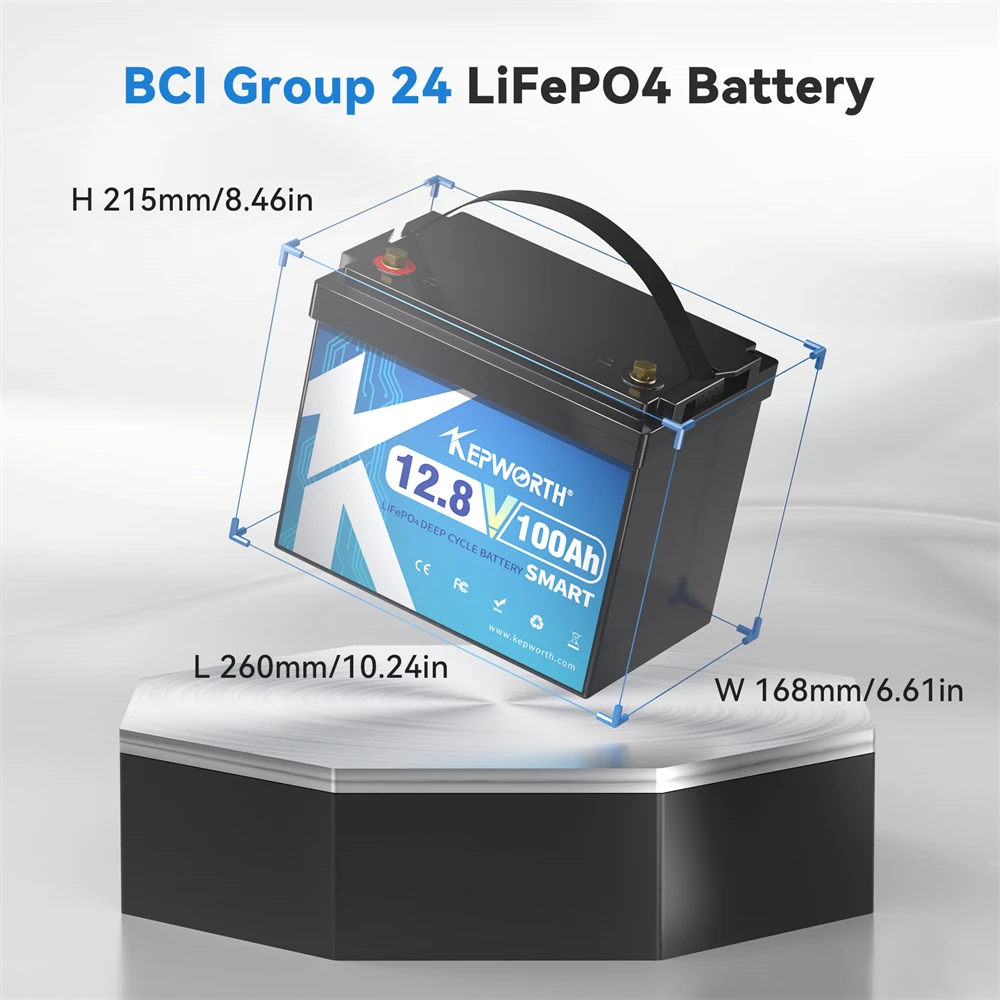

Dimension: 260*168*215mm

Hign-concerned Chemical: None

Maximum charging current: 0.5C

Model Number: 12V 100Ah

Nominal Capacity: 12V 100Ah(1280WH)

Origin: Mainland China

Type: LiFePO4

Voltage: 12V

Weight: 10kg,10KG

Working temperature: -20 ~ 60 ℃

used for: Golf carts,Scooter,RV Campers,Golf Cart,electric boats, forklifts, AGV robots etc

Brand: KEPWORTH
Capacity: 100Ah
Battery Material:Lithium Iron Phosphate Battery(LiFePO4 Battery)
Nominal voltage: 12V
Max Protection Voltage: 14.6V
End Voltage: 10V
Instantaneous discharge current:≥2C
Continuous discharge current:≥1C
Dimension: 260*168*215mm
Weight: 10KG
Certificate: CE ROHS MSDS UN38.3
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
BMS: 100A Smart bluetooth BMS
Cycles Life: 2000 Cycles-100%  6000 Cycles-70%
Max Charge Current: 0.5C
Working temperature : -20 ~ 60 ℃
Charge temperature: 0-45℃
Warranty: 2 yesrs
Parcels includes:
1pcs KEPWORTH LiFePo4 Energy Storage Battery pack
1 Product Instruction Manual
(Recommend Charging Voltage: 14.6V for 12V LiFePO4 Battery
Note: About series/parallel connection
Series: 12V 100Ah LiFePO4 battery support connections up to 5 indentical batteries in series
Parallel connection: Unlimited number of parallel connections
Used For:
Solar Panel Power Bank System, Solar VRLA Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Car/ Motorcycle / ATV Engine Starts)
About 12V 100Ah BMS:
Support Languages: Spanish, German, English, Chinese, Russian, Norwegian and French.

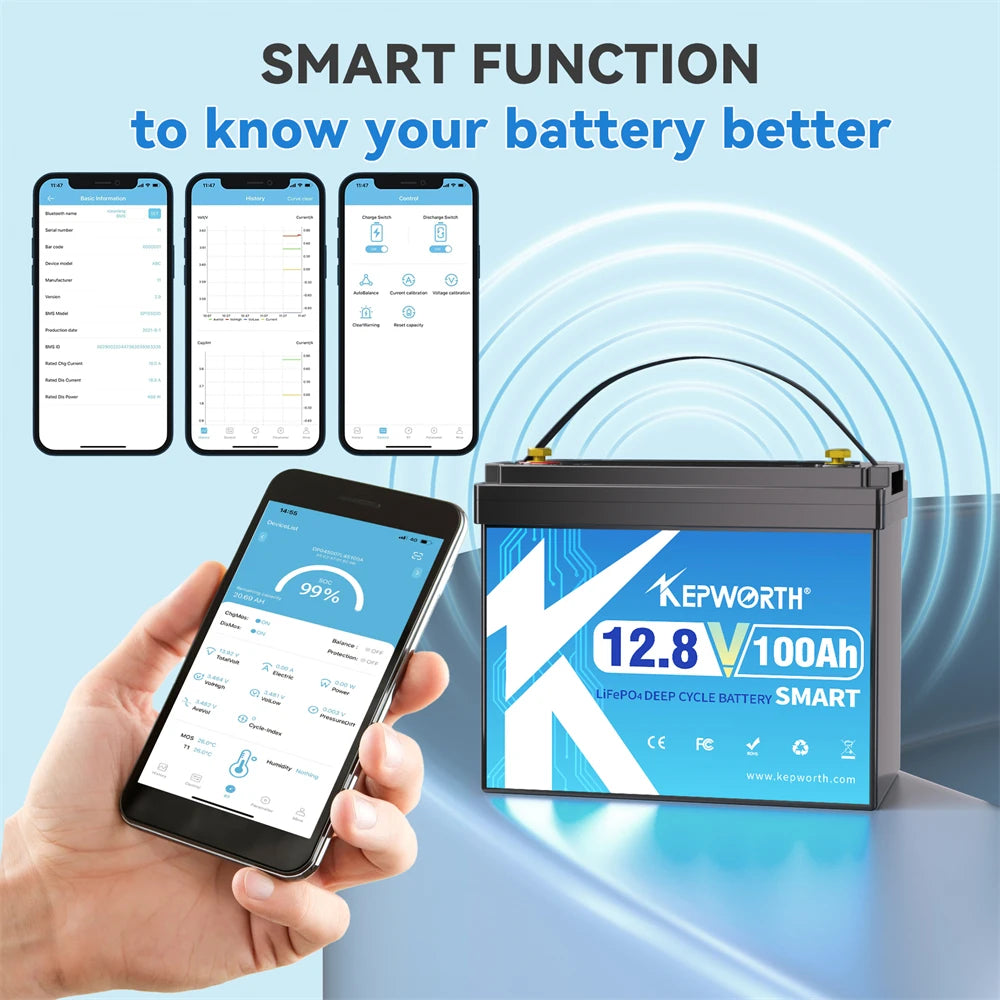

Overview:The Bluetooth communication mobile phone APP system mainly connects the special Bluetooth device through the Bluetooth function of the mobile phone, and the Bluetooth device communicates with the BMS, so that the user can detect the BMS information directly through the mobile phone and carry out the functions of reading, managing, querying and managing, thusreplacing the special BMS equipment and software.


Bluetooth communication mobile phone APP system includes real-time data reading, protection parameters, core characteristics, acquisition board settings, temperature protection, system settings and query functions.
The main functions of the system are:
1) Parameter reading: alarm fault information, number of temperature, number of battery strings.
2) protection parameters: monomer over voltage protection, monomer under voltage protection, overall over voltage protection, overall under voltage protection, differential pressure protection, charging over current protection, discharge over current protection.
3) Core characteristics: battery type, rated capacity, monomer reference voltage, dormant waiting time, SOC setting, balanced opening voltage, balanced opening pressure difference.
4) Acquisition board setting: number of acquisition board, number of acquisition board 1 unit, number of acquisition board 2 unit, number of acquisition board 3 unit, number of acquisition board 1 unit temperature, number of acquisition board 2 unit temperature, number of acquisition board 3 unit temperature.
5) Temperature protection: charging high temperature protection, charging low temperature protection, discharge high temperature protection, discharge low temperature protection, temperature difference protection, power tube temperature protection.
6) System settings: charging switch, discharge switch, restart system, restore factory settings, current to zero, reset password.

System Characteristics：
1) Alarm prompt: alarm fault view, alarm prompt automatic elimination after fault release.
2) Bluetooth: When the user opens the software, if the userdoes not turn on the Bluetooth function, then automatically prompt to turn on the phone Bluetooth, unplug or sleep automatically disconnect Bluetooth connection.
It has excellent safety performance and high efficiency and stability working performance than traditional Lead acid battery.
Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).
Built-in BMS: BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.
Lithium ion Technology: Unlike Lead Acid batteries, Battle Born's deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective. When factoring time and cost into your purchase, our lithium ion battery banks come out ahead every time. Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.
Green Energy Battery: Made from 100% safe, nontoxic, renewable energy, Battle Born Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.
