SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Cylinders: 1

Dimensions (L x W x H) (mm): 52*52*120cm/20.47*20.47*47.24inch

Engine: 4 Stroke

Fuel Type: Gasoline

Hign-concerned Chemical: None

Origin: Mainland China

Description

This outboard motor is made of high-quality aluminum alloy material, which is a good choice for you to enjoy your cruise. The excellent engine performance can bring you a comfortable sailing experience, as well as convenient ignition and flame failure devices to protect your safety. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!

Key Features

High-quality Material: High-quality aluminum alloy, combined with spray painting technology, has excellent corrosion resistance, wear resistance,heat resistance, impact resistance, deformation resistance, and other properties. You can use it in water with confidence.

Outstanding Performance: The 4-stroke 7hp engine with 4500-6000r/min can provide a speed of 6.21-9.32miles/hto give you a comfortable and labor-saving sailing experience. Moreover, the three-blade propeller and streamlined design can reduce water resistance and provide greater power during operation.

Easy to Operate: This product has three gears: forward, neutral and reverse. By controlling the throttle lever and turning the throttle handle, you can freely control the navigation direction, and achieve infinite speed change, or you can cruise at a constant speed to enjoy different cruising experiences according to your needs.

High Safety: The air cooling mechanism helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time to keep it sailing smoothly. Moreover, the anti-swirl plate reduces swirl, allowing you to sail more safely. The emergency flameout rope can help you to turn it off quickly.

Stable Engine: The dense heat dissipation holes on the casing help the engine dissipate heat quickly and promptly. Moreover, the air filter helps to filter impurities in the air and reduce the wear and tear of dust and sand on the engine, which can achieve stable machine operation.

Low Fuel Consumption: It uses an advanced TCI ignition mechanism and a high-quality carburetor that allow the fuel to burn well and consume only 0.53 gal/hour, which not only saves fuel but also reduces costs.

Easy to Install: The simple structure and complete accessories allow you to easily install it on the ship for a more comfortable sailing experience.

Protective Package: The double wrapping of foam and cardboard boxes can effectively protect the product in transit.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Engine Oil Filling Pipe: Tubular smooth engine oil filling pipe makes it easier for you to fill the oil and not easy to spill.

Stern Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.

Ergonomic Handle: The rubberized throttle control handle increases friction and has a comfortable grip, making it easier to use.

Quality Silencer: It can effectively alleviate the noise generated during the operation process, control the noise within an acceptable range, and provide a comfortable working environment.

Application

This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.72-21.65 inches. It is widely used in fields such as fisheries, aquaculture, water transportation, net fishing, luring, outboard backup, outings, river cleaning/maintenance,and outdoor exploration.

Specification

Material: Aluminium Alloy, Rubber

Process: Spray Painting

Color: Black

Type: 4-stroke 7HP

Displacement: 196CC

Gear Ratio: 2.08(27:13)

Cylinder: 1

Max.Output: 5.1kw

Rotation: 4500-6000r/min

Speed: 10-15km/6.21-9.32miles/H

Gear Positions: F-N-R

Ignition Mechanism: TCI

Cooling Mechanism: Air-cooling

Control Mechanism: Tiller Control

Starting Mechanism: Manual Start

Recommended Fuel: #92 Lead-freeGasoline

Recommended Engine Oil: Four Stroke Engine Oil

Trim and Tilt Mechanism: Manual Tilt

Max. Fuel Consumption: 2L/0.53gal/H

Standard Fuel Tank Capacity: 1.4L/0.37gal

Bore Stroke: 7*5.1cm/2.76*2in

Adaptive Transom Plate Height: 50.5cm/19.88in

Recommended Propeller Range: 3-7 1/2''x5''

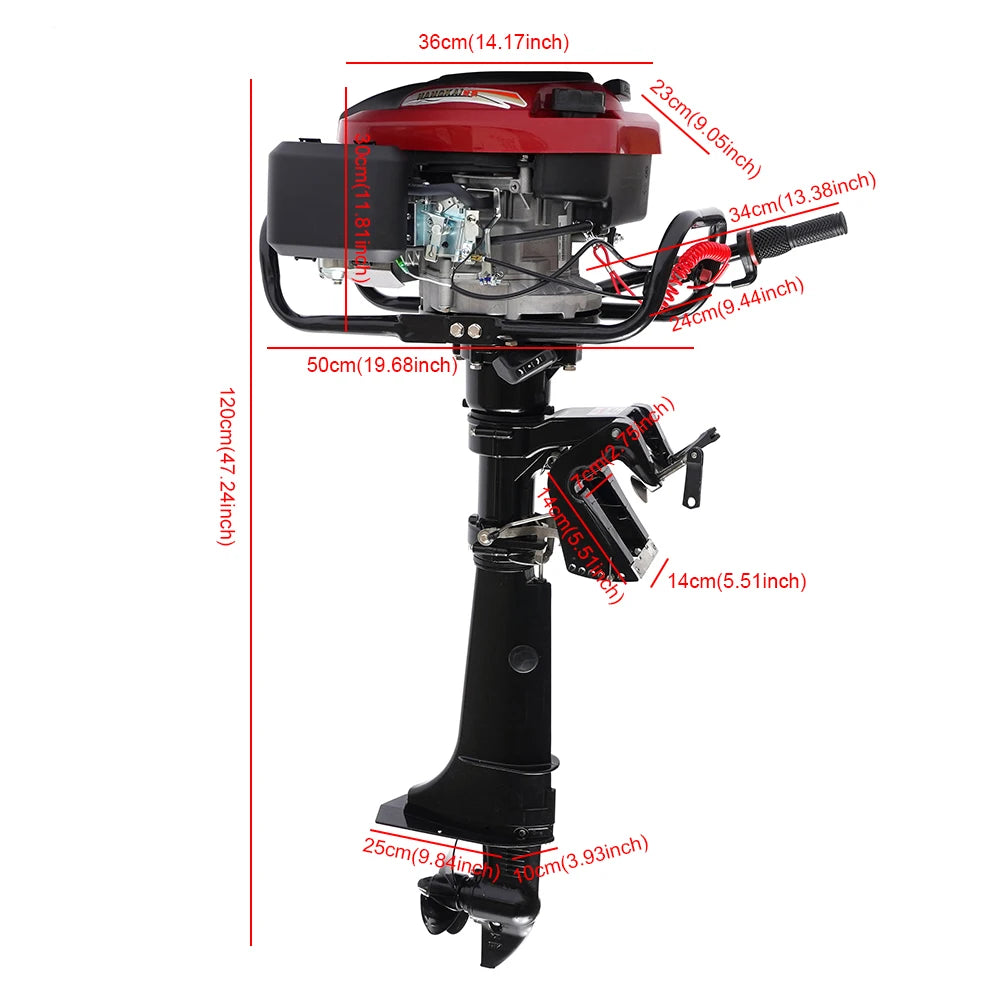

Product Size: 52*52*120cm/20.47*20.47*47.24in

Outboard Motor Head

Package Size: 41.1*39*38cm/16.18*15.35*14.96in

Gross Weight: 18.31kg/40.37 lbs

Net Weight: 14kg/30.86 lbs

Outboard Motor Shaft

Package Size: 95*42.5*30cm/37.4*16.73*11.81in

Gross Weight: 14kg/30.86 lbs

Net Weight: 11.2kg/24.69 lbs

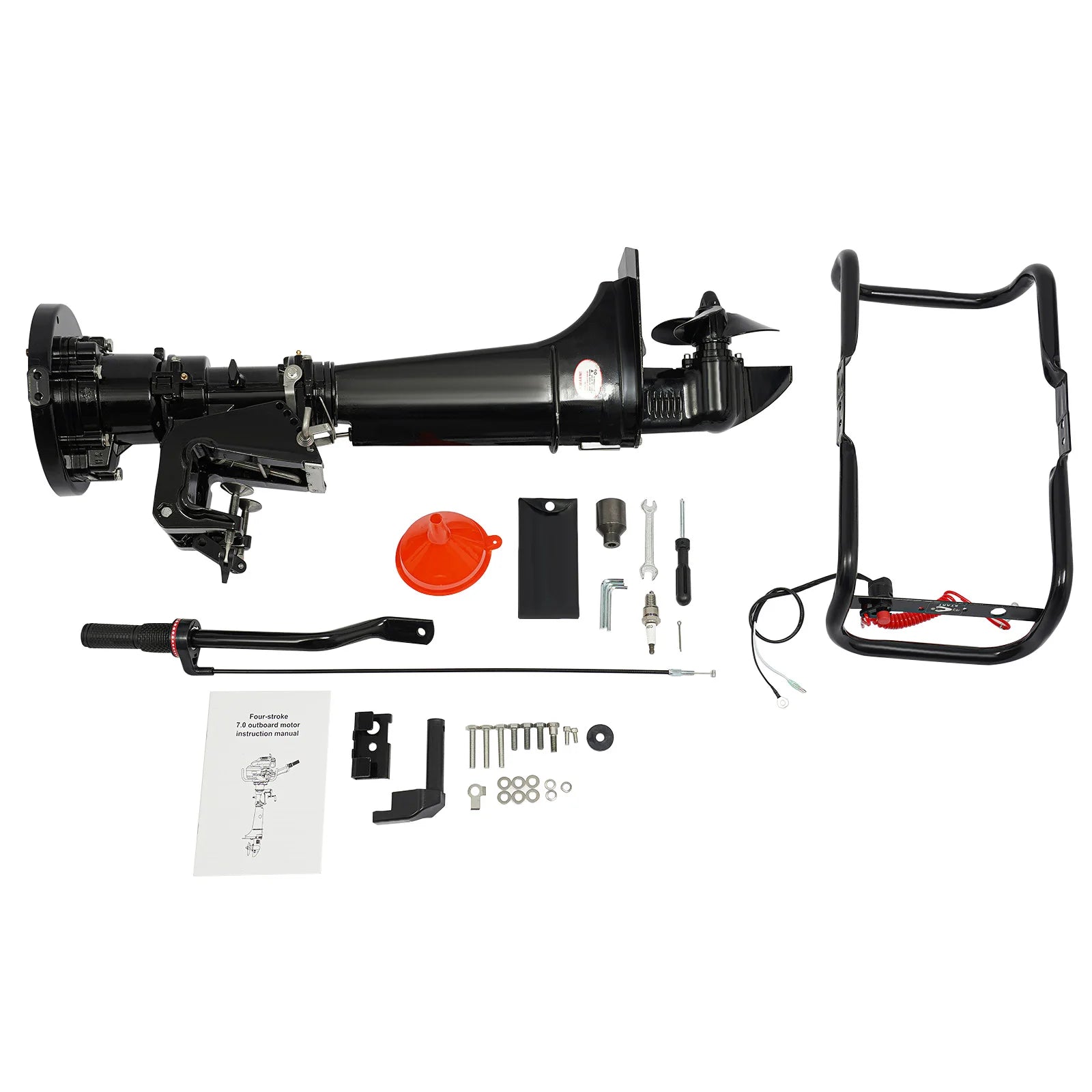

Package Included

1* Outboard Motor

1* Funnel

1* English Manual

All Accessories for Installation

Notes

1. Please note that all the gasoline machines are noisy, currently we did not test the decibel , but the noise is the same as the motorcycle, so it is a normal phenomenon.

2. Please note that to avoid damage, our outboard motor will be shipped in two packages.

3. Please carefully read the manual and product labelling and strictly follow the precautions to have a better experience.

4. Please measure the height of your boat before purchasing to ensure suitability for this product.

5. Please start the motor in the water.

6. Please note that this product should use 92 # unleaded gasoline, and an appropriate amount of 4-stroke engine oil needs to be added through a dedicated oil filling hole for lubrication. Please note that the four-stroke outboard oil tank can only be filled with pure petrol, and the oil tank should be filled with four-stroke special oil (automobile and motorbike oil are acceptable) and according to the scale instructions on the scale, do not add more or less oil. Check whether the oil is sufficient before each use.

7. Please do not drive too fast during the running-in period. After the running-in period, the gear oil needs to be replaced, and the second replacement time is about 100 hours or 6 months later. Our outboard motor doesn't come with gear oil, please prepare it by yourself.

8. After cruising in seawater or turbid water, please clean the outboard motor with fresh water. The engine should be stored in a dry and well-ventilated place, and avoid direct exposure to sunlight. If not in use for a long time, please thoroughly clean the gasoline in the fuel tank.

9. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors. The heavier its load, the slower it goes. Customers who have high requirements for speed, please pay attention.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
