Product description

Description

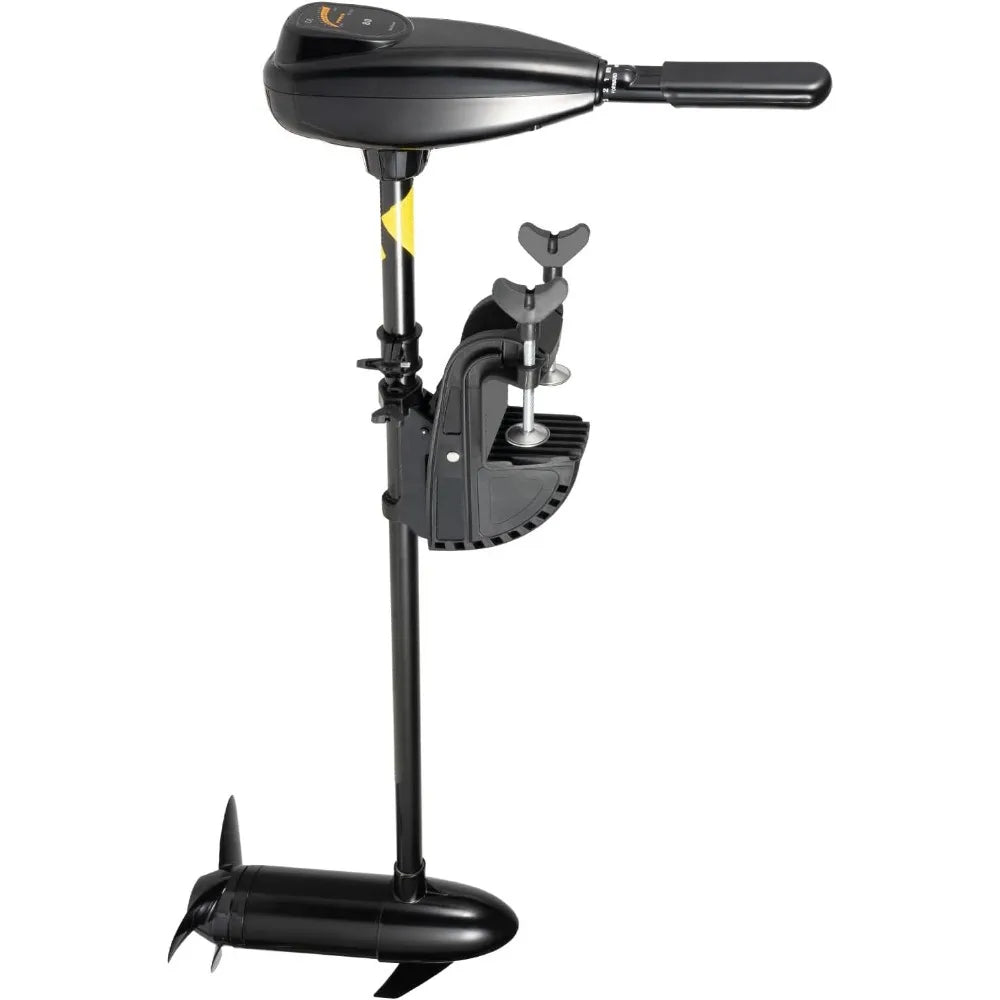

Do you like fishing on the river? Do you want to go boating with your family? But are you worried about manual boating is too tired? With our electric trolling outboard motor, you don't have to worry about this problem. This electric trolling motor has sufficient power and can drive the boat at a fast speed. The 1.2 HP electric trolling outboard motor is suitable for all kinds of small boats, such as rubber boats, fishing boats, and wooden boats.
Details
Pure Copper Motor: It is equipped with a high-performance all-copper motor underwater motor system with low heat loss and more power-saving, allowing it to work more efficiently.

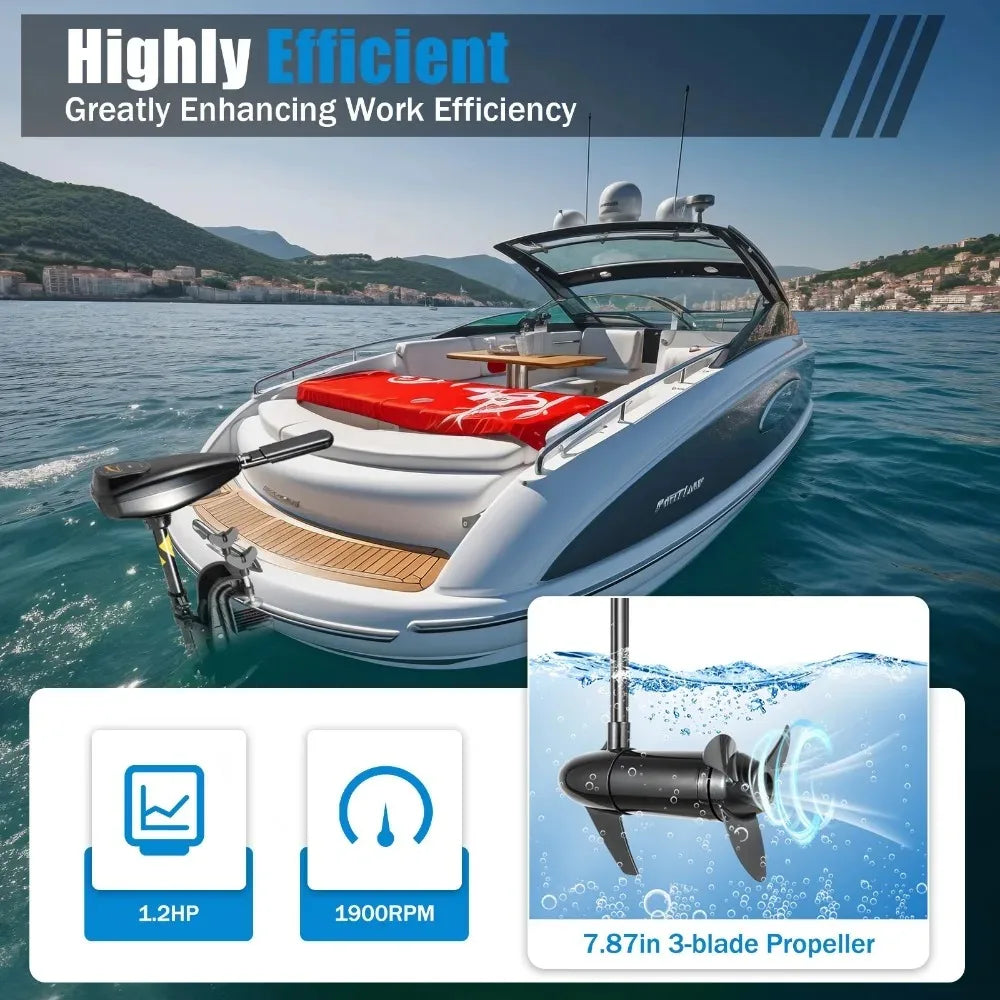

Three-Blade Propeller: This motor uses an anti-tangle three-blade propeller to replace the traditional manual boat propeller. This propeller has a fast speed and allows the boat to be driven quickly.

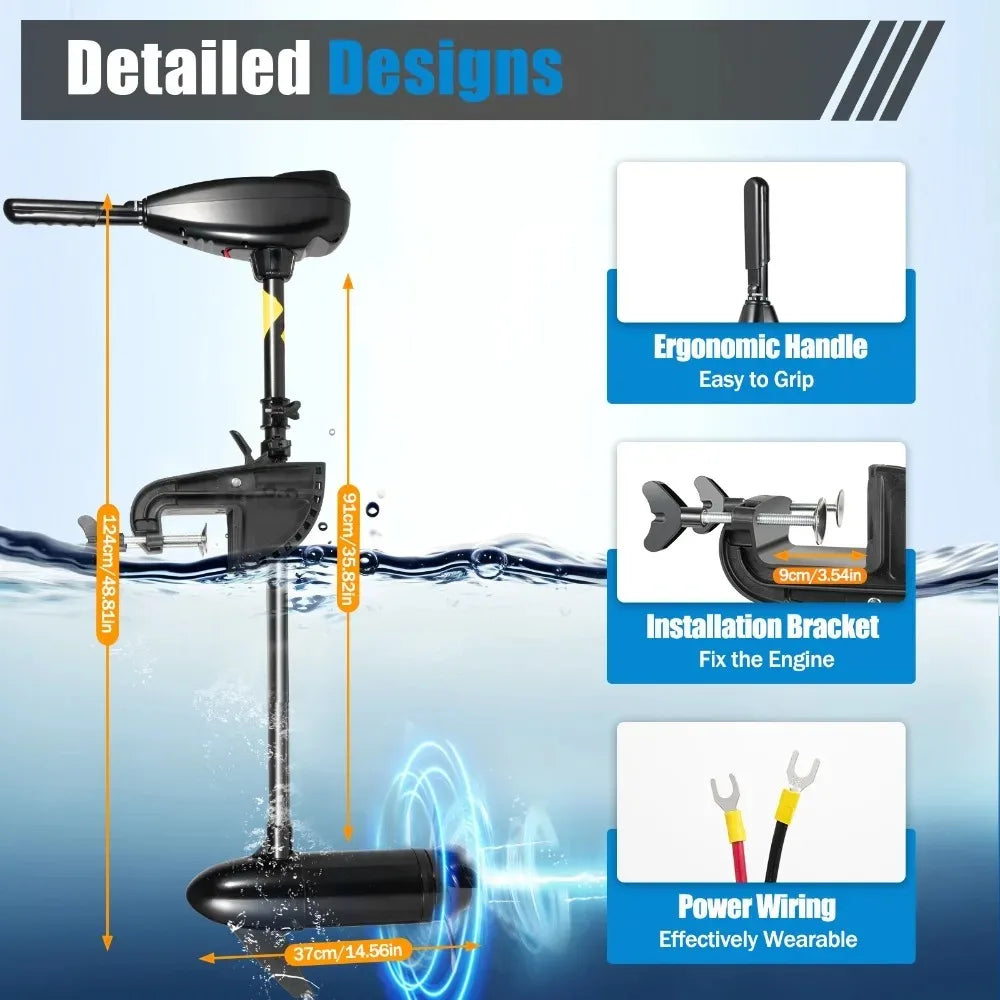

Mounting Bracket: The electric trolling outboard motor has a mounting bracket on the rod, which is used to secure the engine firmly on the boat. It is also very easy to install.
Power wiring: The connecting wire is made of the full copper inner core, which is effectively waterproof, and corrosion-proof, with quality assurance.
High-quality Main Pole: The main rod is made of aluminum alloy, which is light, tough, and corrosion resistant, ensuring a long service life.
Application
Electric outboard motor 12v is suitable for small boats of different materials, such as inflatable boats, iron boats, plastic boats, wooden boats, fishing boats, and sailboats.
Specification
Material: Aluminum Alloy, Nylon, ABS, Copper
Input Voltage: 12v
Output power: 800w
Horsepower: 1.2HP
Suitable Number: 6-8 People

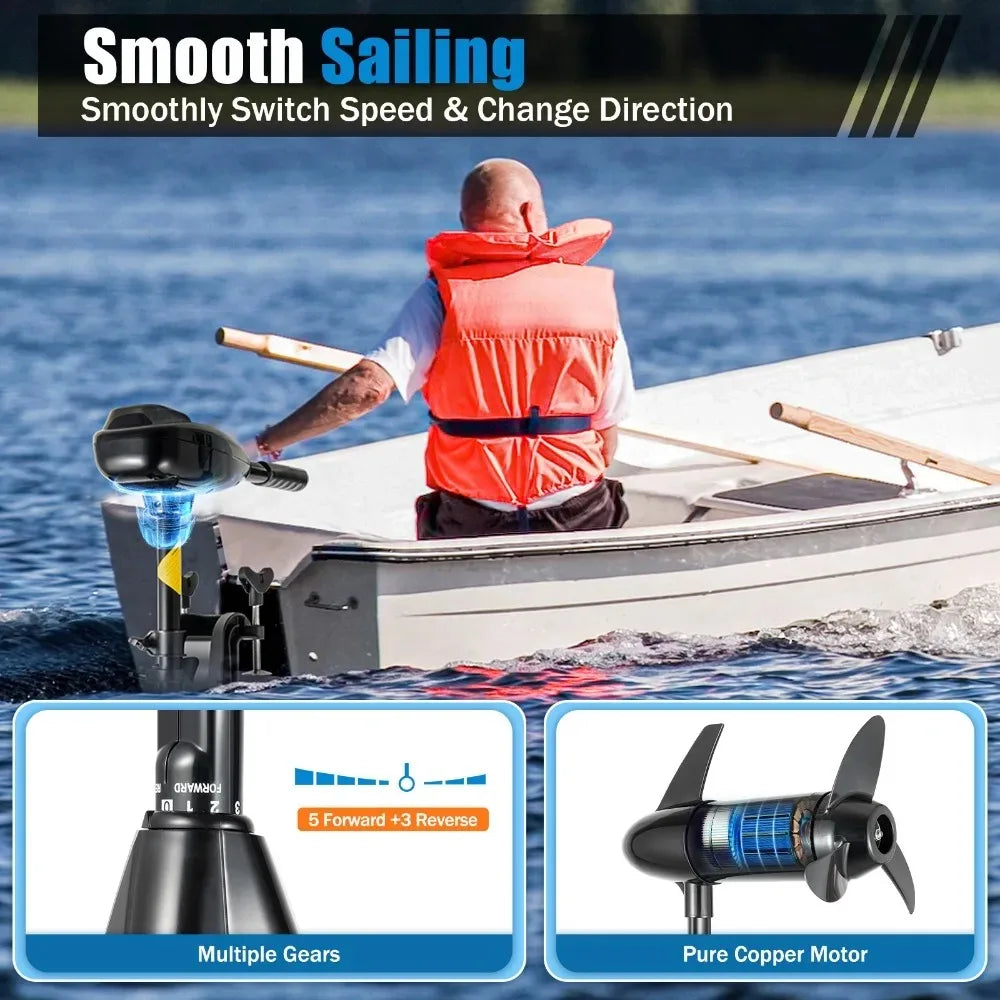

Speed Regulation: Forward 5 Gears, Backward 3 Gears
Motor Type: Brush
Number of Propeller Blades: 3
No-load Speed: 1900r/min
Control Method: Manual Control
The Fixing Method of the Hull and the Propeller: Suspended
Power Mode: Motor Drive (Battery Needs to be Purchased Locally)
Thrust: 36kg/80lbs
Net Weight: 10kg/22lbs
Gross weight: 12kg/26.45lbs
Traction Force: 1850kg/4078lbs
Packing Size: 130*48*17cm/51.18*18.89*6.69in
Main Pole Length: 91cm/36in
Control Handle Length: 45-56cm/17.71-22in
Package Included
1* Electric Trolling Outboard Motor
1* Fan Blade
1* English User Manual
All Accessories Necessary for Installation

Notes
1.Be sure all switches are in the OFF position before connecting to the battery. Electrical arcing near the battery could ignite hydrogen gas and cause the battery to explode.
2.Before the installation, Make sure the area between the column and bracket is clear.
3.Please do not allow children to operate the electric outboard motor.
4.Please do not modify the unit in any way or add accessories not intended for this product.
5.Never fully submerse the unit, if the unit is accidentally submersed disconnect the battery and leave it to dry.
6.Always disconnect power from the motor when replacing the propeller, removing debris around the prop, charging batteries, transporting the boat or when the motor is not in use.
7.To prevent accidental damage of the shaft, do not over tighten the mounting bracket. Only use this product between the temperatures of -20C to +45C (-4F to +113F).
8.The motor can only be used in water that is deeper than 1.5m/4.92ft.
9.Remember to wash the motor using fresh water after using it in salt water as it can greatly reduce the possibility of corrosion.
10.Remember always disconnect from batteries once the motor leaves water as a rotating propeller can cause personal injury.
11.Please choose a 12v 30-120AH battery, and choose the corresponding ampere hour battery according to the usage time. 12.Please note that the battery is not included in the package.
13.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
